G scale structure

Plans for 1:24 Garden Scale Railroad Structures

Create your own structures for your Garden Scale railroad.

Each G Scale plan set comes complete in two formats:

Scaled drawings

  • Print to standard 8 1/2 x 11 letter-size paper
  • Dimensions given are size of finished building - just like an actual set of house plans

and...



Actual size templates

  • Printable to 11" x 17" (can be done at most copy centers)
  • Cut out and trace directly to your building materials - no measuring or calculations required.
  • Templates can be "print reduced" for 1:29 and 1:32 scales

Some images on this site are photos of N or HO scale versions

Instant download: Place your order, pay securely with PayPal - even if you don't have a PayPal account. Download your plans immediately to get started on your next project!

Plans are NOT sent by mail! Instantly download your plans and you can start your project within minutes of placing order!
It's This Easy:
Place you order...you will be re-directed to a Download page where you can download your plans, or... if you prefer to have your plans sent by email you must contact us after placing order. Contact Us

Please read License Agreement and Privacy Policy prior to ordering

Solution Graphics

For Copyright and Licensing purposes plans will be automatically registered to your email address and the IP address of the computer used to download. Please contact us if you use a computer other than your own to download the plans.

More comfortable with hobby tools than computers?  Click here for a brief intro to online shopping at ScaleModelPlans.com

Follow the links to see more Garden Scale plans:

Craigellachie Train Station

Please read the Intellectual Property License Agreement prior to ordering.

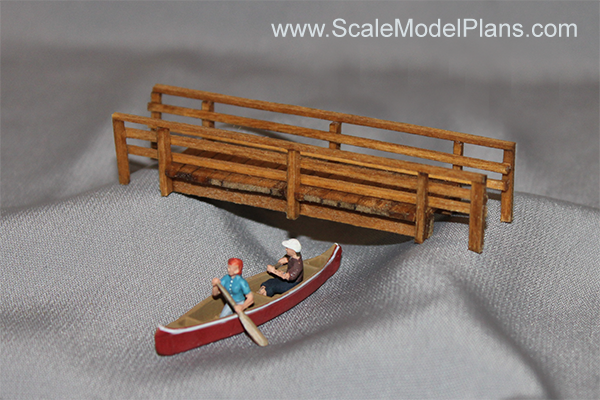

Plans 190g & 390g - Foot Bridges

PDF Plan Package: $4.95

(includes both bridges)

Scale: G, (Garden Scale)

Building footprint:

Plan 190: 12" x 4 11/16"

Plan 390: 22 21/32" x 4 13/16"

Stone arch bridges have been around since the beginning of recorded history.
There are several famous stone arch railroad bridges and viaducts, and were often made with limestone or granite blocks.
The first stone bridges were simple, single arch bridges meant for pedestrian or animal crossings, and were sometimes made using fieldstones.

* This plan package includes both foot bridges.



garden scale plans great stone viaduct

Plan 1190g - The Great Stone Viaduct

PDF Plan Package: $9.95

Scale: G, (Garden Scale)

Building footprint: variable

The Great Stone Viaduct in Bellaire, Ohio, was constructed between 1870 and 1871 by the B&O and Central Ohio Railroads. The viaduct consists of 43 stone arches, providing a rail link between Ohio and West Virginia.

The Great Stone Viaduct Historical Education Society is working to restore and preserve this National Historic Site. Please visit their site at http://www.greatstoneviaduct.org




Garden Scale model railway bridge plans

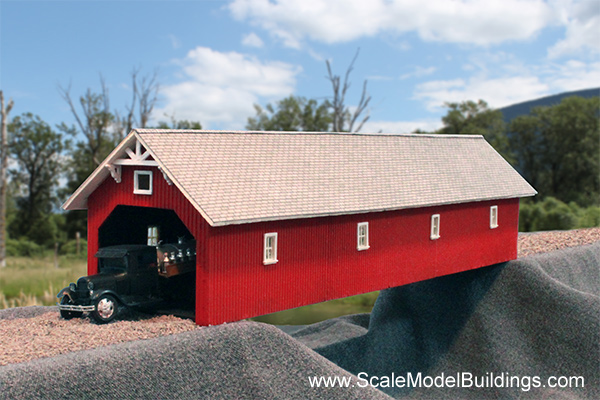

Plan 1290g - New England Covered Bridge

PDF Plan Package: $7.95

Scale: G, (Garden Scale)

Building footprint: 37" x 8 3/4" (approx.) can be modified

Anyone with a hint of nostalgia would not be able to take a trip across the Maritimes or New England without visiting a covered bridge. This HO scale model captures the details of two of my favorites – one in Eastern Canada, the other in the Eastern States. The plans indicate the original dimensions of the structure but can easily be modified to fit individual layouts.



Instant download: Place your order, pay securely with PayPal - even if you don't have a PayPal account. Download your plans immediately to get started on your next project!

Plans are NOT sent by mail! Instantly download your plans and you can start your project within minutes of placing order!
It's This Easy:
Place you order...you will be re-directed to a Download page where you can download your plans, or... if you prefer to have your plans sent by email please contact us after placing order. Contact Us

Please read License Agreement prior to ordering

Solution Graphics

More comfortable with hobby tools than computers?  Click here for a brief intro to online shopping at ScaleModelPlans.com


garden scale model train covered bridge plans

Plan 1400g - Covered Railway Bridge

PDF Plan Package: $7.95

Scale: G, (Garden Scale)

Building footprint: 31" x 10 1/8" (approx.) can be modified

Covered railway bridges came about as a plan to extend the life of the structures by protecting the critical components from the elements. As the concept caught on they began appearing throughout the world, but probably the greatest number being in Canada and the United States. This example does not represent a specific structure, but takes it's design from the many thousands of similar bridges constructed in the Eastern United States and Canada during the 1800's.

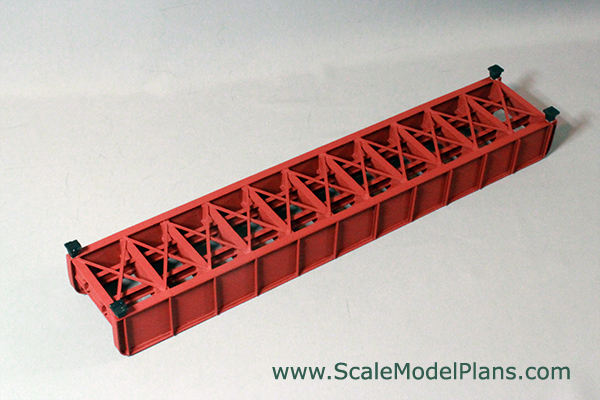

Plan 1590g - Plate-girder Bridge

PDF Plan Package: $10.95

Scale: G, (Garden Scale)

Building footprint:

  • Plate-girder: 49 3/8" x 9 1/4" (approx.)

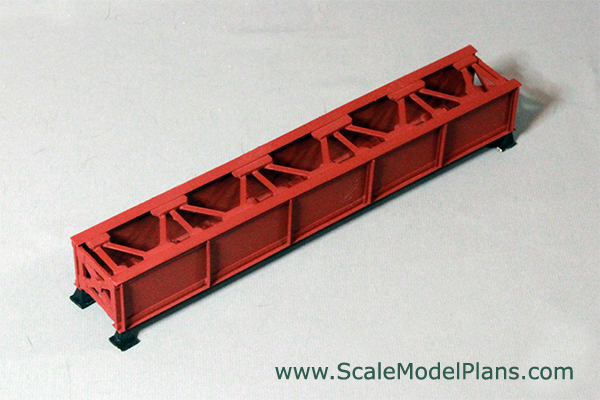

  • Deck-girder (each): 2'6" x 3 3/4" (approx.)

Plate girder bridges are probably the simplest of railroad bridge styles, but add so much to the realism of any layout because they are so common. Almost any railroad or line you can imagine has at least one style of plate girder bridge.

late girder bridges get their name from the components of their simple design. This is also how they get their structural integrity. The vertical plates provide a significant amount of strength, and the girders, or glorified I-beams tie them together to provide their significant load-bearing capacity.




garden scale 1:24 CNR railroad truss bridge plans

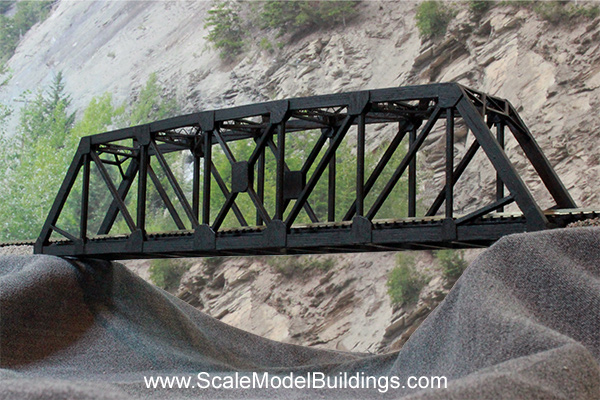

Plan 1790g - CN/CP Bridge

PDF Plan Package: $8.95

Scale: G, (Garden Scale)

Building footprint: 10 1/2" wide, length can be modified

This bridge near Hope B.C. is a common truss type, spanning approximately 180 feet across the Coquihalla River. It is shared by both CN and CP Rail as the route from the Fraser Valley to the west heads north along the Fraser River. This style of bridge is common to just about every popular railroad, and can be found in single spans, or multiple spans resting on concrete piers. The plan can easily be extended for increased span.
