Plan 1924 - Arrow Creek Sawmill

PDF Plan package: $9.95

The "Pacific Northwest", which included British Columbia, Washington, and Oregon, was home to some of the largest Douglas Fir, cedar, hemlock, and other species of softwood in the world. What was originally an encumbrance to the settlers arriving from Europe wanting to farm the areas soon became one of their most valuable commodities. In some cases, trees were actually burned in order to prepare the land for farming, but once farming was established, logging and lumber mills began to appear.

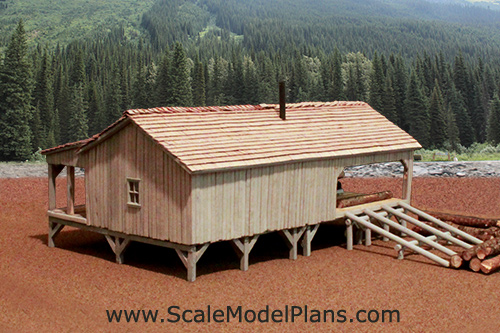

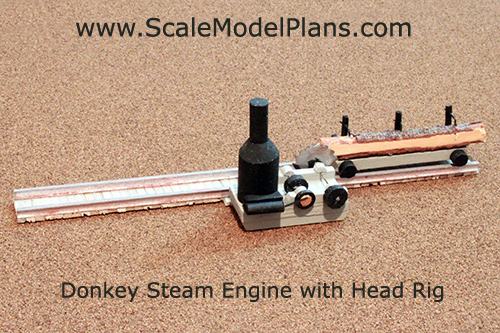

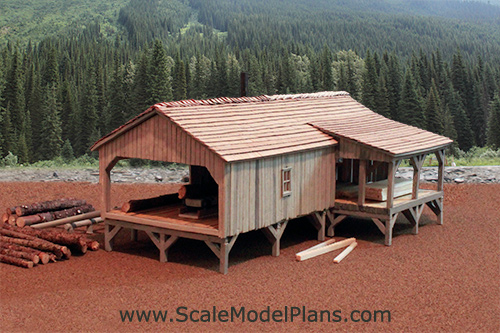

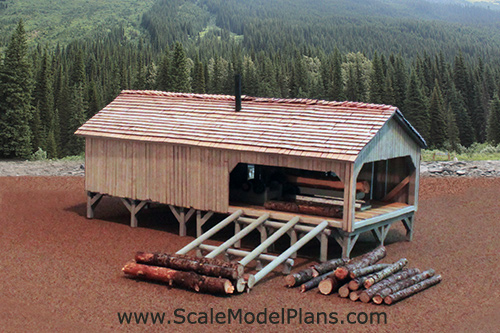

The Arrow Creek sawmill, one of many small steam powered sawmills, used a converted "donkey" engine from a logging camp. The mill was later converted to electricity.

Evan Designs MB program templates available

Model Builder users:

For Licensed users of the Evan Design Model Builder software program we have created importable template files allowing you to easily create your own customized cardstock version of our plans. Click here for more information.

Plan 2088 - Oil Refinery

PDF Plan package (all six structures): $19.95

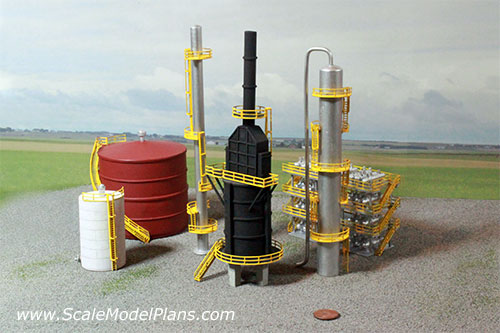

This project can be constructed in a variety of scales using balsa, styrene, and easily obtainable materials such as dowels and tubing. Plan includes six structures: two storage tanks, two distillation towers, furnace, and heat exchanger. The N scale version shown uses styrene railings, ladder, and stairs.

Due to the complexity and numerous possible configurations of refinery layouts, piping schematics are not included, and will be up to the individual modeler to determine. Painted electrical wiring can be used.

* Note: This plan is for scratch building six various refinery structures and includes scaled plans and traceable templates - there are no cardstock or MB versions with this plan.

Plan 2098 - Kaymoor Coal Mine

PDF Plan package (all four structures): $19.95

Since long before the Industrial Revolution coal has been a primary source of energy for both homes and industry, and continues to play an important role in the economy of many regions.

The Kaymoor Mine and processing plant in West Virginia employed more than 800 workers in the early 1900’s, with operations coming to an end in the early 1960’s. The small local town site once served by the Chesapeake and Ohio Railroad ultimately became one of many coal mile ghost towns.

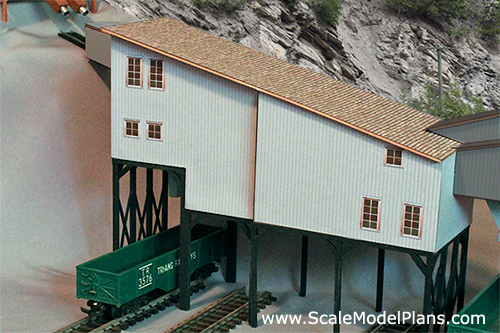

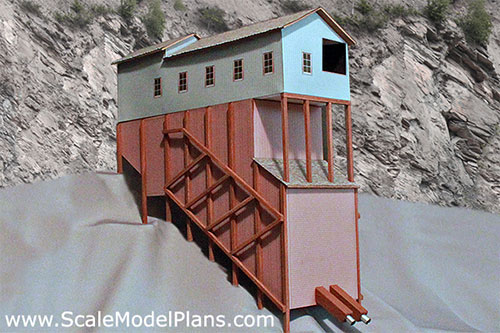

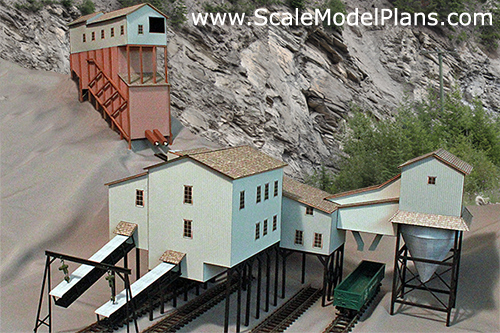

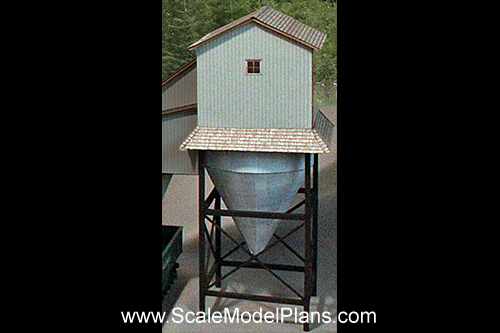

The complete package includes plans of four main structures, connecting passages, chutes, and loading booms as shown. This set comes in a compressed file package. You will need WinZip or similar free program to unzip.

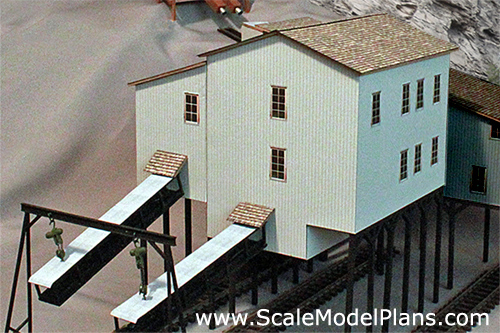

* Note: The cardstock version (shown) will require some balsa pieces

Evan Designs MB program templates available

Plan 558 - Silos

PDF Plan package: $8.95

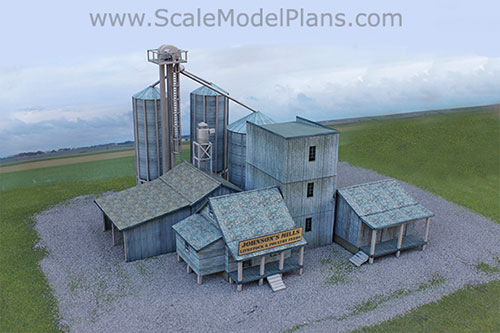

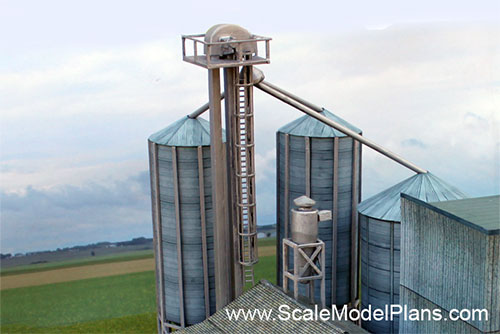

Included are plans for a 130 Ton Storage Silo, a 300 Ton Storage Silo, cyclone dust extractor (simplified), and an elevator/distributor. These models were designed for the feed mill but could be used for other industrial models.

A combination of balsa, styrene or basswood and cardstock or other sheet material will be required. (*Note: These plans are included in Plan 2978 but can be purchased as Plan 558)

Complete Set ¦ 1 ¦ 2 ¦ 3 ¦ 4

Plan 2020 - Low-relief Cardstock Backgrounds

PDF Printable package: $8.95 (includes all four)

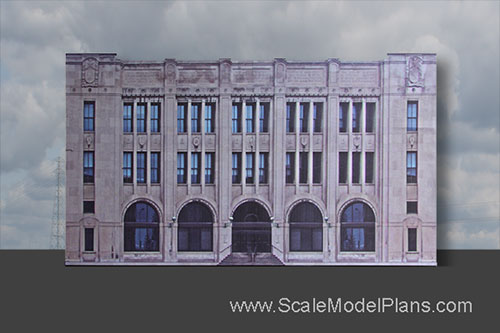

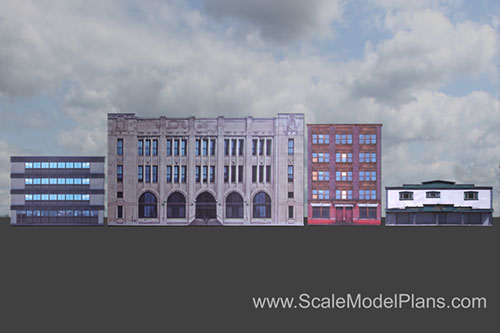

"Low relief" backdrops provide a quick and cost effective way to enhance your model train layout. They also help to create a nice transition between our other three dimensional structures and the final backdrop or back wall of the train room. You can print out multiple copies, or combine them with Plan 2060 - "Low-relief" Industrial Buildings to quickly populate a commercial or industrial section of your model railroad plan.

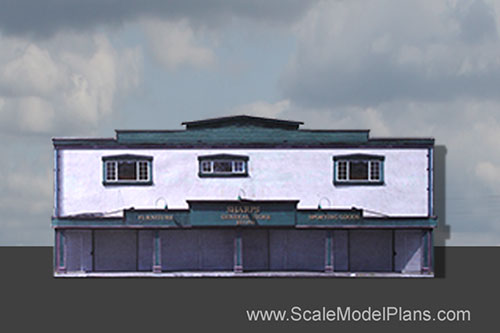

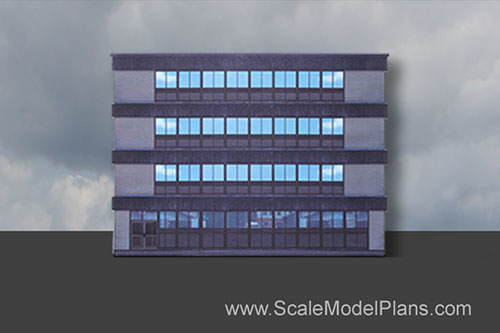

This package contains color cardstock printouts only, (Office Building, Federal Building, Textile Mill,General Store). There are no scaled plans or traceable templates with this package. All scales print to standard letter size paper. Some assembly will be required.

Plan 2060 - "Low-relief" Industrial Buildings

PDF Printable package: $10.95 (includes all four)

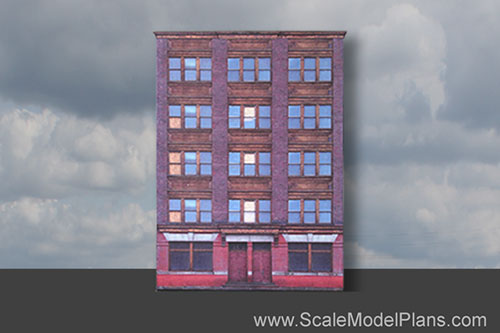

Low relief structures can create a high density look with a relatively small building footprint. Common placement of low-relief structures is at the rear of a layout, usually adjacent the backdrop. This set of four industrial low relief structures can be done separately as individual buildings, or in a row to create an industrial block. With a bit of manipulation, the patterns could be mirrored and modified to create complete structures. (*includes 'photo-texture' cardstock sheets)

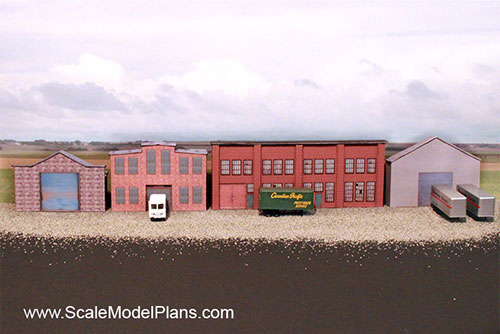

Image shown is the included cardstock version done in N scale.

* Package includes scaled plans and traceable templates as well as color cardstock printouts.

Evan Designs MB program templates available
